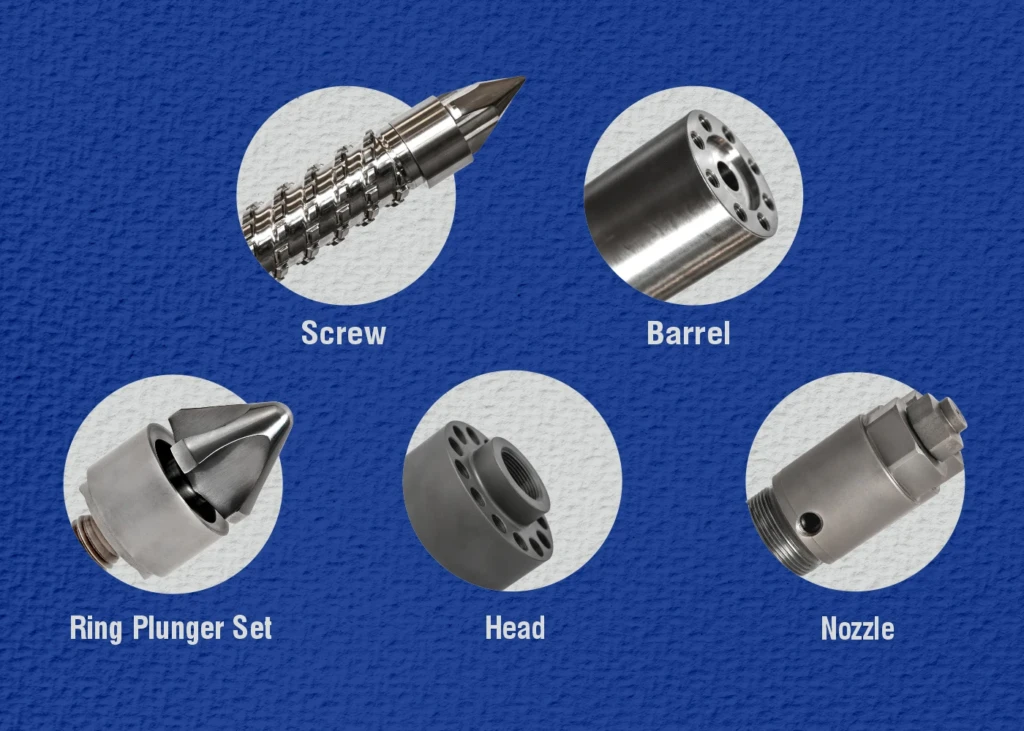

Where are injection molding screw and barrel used?
Injection molding screw barrels has been contributing their experience and expertise to injecting molding machines in various fields like below:
- Automotive Industry
- Packaging Industry
- Medical Industry
- Electronics Items
- Logistics Industry
- Consumer Goods
- White Goods
Technical Specification:
Ranging screw diameters from 18mm to 300mm & Length up to 5000mm
Screw & Barrel Base Material: EN41B, D2, M2, H13, 17.4PH, AISI4340, AISI4140
Surface Treatment: Gas/Ion Nitriding, Vacuum Hardening, Chrome Plating, Through Harden, Bimetallic Alloy Coating
Nitriding Layer Depth: 0.5to 0.7mm
Nitriding Skin Hardness: 62 to 65 HRC
Bimetallic Coating Layer: 1.5to 2mm
Bimetallic Coating Hardness: 65to 68 HRC
Bimetallic Coating Alloy: Wc (Tungston Carbide), Ni, B, Cr
Dimensional accuracy in tolerance ± 0.02 mm
Certificate of base and coating material is given
